Word and numbering 2 – outline numbering

August 8, 2007 · 21 Comments

In the first part of this short series we looked at simple numbered lists in Word. In this concluding part we will look at some of the important issues surrounding the use of Outline Numbering.

First of all, some information on the general uses of Word outlines. Word outlines involve allocating paragraphs to different levels. So a main heading might be level 1, the sub-heading level 2, sub-subheading level 3 and so on to level 9. Standard paragraphs of text would not have a level, but would be ‘body’ text. Once these levels are established, they can be used to quickly re-arrange a document or to automatically create a table of contents. In addition, and with particular relevance to our numbering issue, they can be used to automatically create and maintain numbering throughout an entire document.

Outline example

(more…)

Categories: Level · Not quite so simple · Office software · Word

Word and numbering 1 – simple numbered lists

July 11, 2007 · Leave a Comment

Using outline numbering and styles

Coping with paragraph numbering is a common cause of problems and irritation in Word. Whilst Word’s automatic numbering will cope adequately with simple lists, once things get more involved and multi-level numbering is required, things can quickly get out of hand. Our usual advice in these situations is to use Word’s ‘Outline numbering’ facility to cope with the numbers and formatting. A recent query from one of our clients who was setting up a ‘Letter of Engagement’ template, incorporating several levels of paragraph numbering, led us to investigate the whole area in a bit more depth – and to discover a useful – and vital – feature we were previously unaware of.

So in this short series we will look at the whole subject of numbering in Word.

Simple numbered lists

First of all, let’s look at simple numbered lists and some possible complications.

(more…)

Categories: Office software · Simple · Word

Excel, the LBW law, range names, form controls and logical formulae

June 18, 2007 · 2 Comments

Nearly two years ago I was running an advanced Excel course and needed to create an example of the use of Excel’s logical functions. Given that most of the people we train work in accountancy, our examples are usually based around financial data but, since it was the middle of the 2005 Ashes tour, the cricket LBW (leg before wicket) law sprang to mind. I’ve extended the example to look at the use of range names in making formulae easier to understand, and also to incorporate the use of a simple interactive form control.

Excel and the cricket lbw law

(more…)

Categories: Excel · I don't believe IT · Not quite so simple · Office software

PowerPoint – giving a presentation – what can possibly go wrong?

June 14, 2007 · 2 Comments

Often when I’m watching other people present using PowerPoint I see them making the same errors that I’ve made (and no doubt continue to make) on many occasions. This post isn’t about the design of the presentation, just some hints and tips to help cope with what can sometimes go wrong. The golden rule is to take two of everything and have some sort of plan for if you can’t get the technology to work – even if it’s spontaneous laryngitis.

Start from current slide

PowerPoint alt-tab

Often people exit from their PowerPoint presentation in order to demonstrate another application by pressing the ‘Escape’ button. Having done what they want outside PowerPoint, they then need to resume the presentation. More often than not, they will click the menu option Slide Show, View Show or use the ‘F5′ keyboard shortcut (PowerPoint 2000 and later) to start their presentation from the first slide, then advance through each slide until they get back to the right slide. There are some more elegant ways to do this:

  • Don’t exit from the presentation with the ‘Escape’ key but use ‘Alt+tab’ to cycle through to the other application, then cycle back again when you have finished
  • Use the ’shift-F5′ (PowerPoint 2003 and later) shortcut key which starts from the current slide rather than the first slide
  • Use the ‘Slide show from current slide’ button at the bottom of the navigation panePowerPoint - current slide button
  • If you have started from the first slide, right-click on the slide and choose ‘Go to slide’ from the shortcut menu and choose the required slide. If you have decided to use the right mouse button to go back rather than display the shortcut menu (see below), then you can access the menu from a semi-visible ‘pop up toolbar’ at the bottom left of the slide screen (this icon is completely invisible until you move the cursor into the bottom left hand corner of the slide) or use Control-s (PowerPoint 2003 and later) to display the list of slides.

Right-click to go back

Go to Tools, Options and the View tab. In the ‘Slide Show’ section you can turn off ‘Show menu on right mouse click’. The right mouse button will then operate as the ‘PageUp’ button to go back an action.

Keyboard shortcuts

As well as F5 and Shift+F5 you many find the following other PowerPoint shortcuts useful:

B or W – show a Black or White screen – useful if you suddenly notice the slide displayed is one you meant to delete or hide!

Number + Return to go to that number slide (if you know it!)

Power management settings

If you’re prone to talking a lot, you might experience that worrying feeling that something strange has just happened on the screen behind you. Often this is because your screensaver has started up. So, before you start your presentation make sure you turn your screensaver off, and also check your ‘Power Options’ in Control Panel – you should find a ‘Presentation’ option which keeps everything turned on.

Remote control

Depending where on the Bill Wyman to Mick Jagger continuum your stage presence lies, you might find it useful to invest in a device to control the presentation remotely –without the indignity of walking around holding a wireless mouse. I recently bought a USB ‘Sweex’ Wireless Media Presenter for about £15 that does the job simply and effectively and includes a laser pointer – lots of more sophisticated options are available.

Nothing on the screen?

Most of these are an insult to your intelligence – but it’s always worth checking – I’ve been guilty of a few in my time…. (more…)

Categories: I don't believe IT · Office software · PowerPoint · Simple

Extend list formats and formulas

May 31, 2007 · Leave a Comment

Have you ever been typing in a list of items in Excel and suddenly found Excel has started automatically filling in formulas in one of the columns or copying the formatting down to each new item in the list? Have you wondered why this happens sometimes but apparently not all the time?

Extending formulas in an Excel list

The first thing you need to do is to check one of the Excel options. Go to the Tools, Options screen and select the Edit tab, see whether the ‘Extend list formats and formulas’ option is selected. Here are the screens first for Excel 2007, and below that previous versions:

Extend list formats and formulas option - 2007

Extend list formats and formulas option

For the automatic extend to work, this option must be turned on, and a rather long list of other conditions has to be satisfied. Perhaps the two most significant are:

At least three of the previous five rows must feature the formatting or contain the formula that is to be extended; and

A formula to be extended must not contain a range name (anyone know why?)

There is a far more complete description of how the option works, together with a list of situations in which it won’t work on the Microsoft site:

http://support.microsoft.com/kb/231002

Categories: Excel · Office software · Simple

Navigation short cut – double click your edges

May 18, 2007 · 2 Comments

I have a feeling I should have known this for years and that this article will highlight an embarrassing gap in my Excel expertise, but just in case I’m not the only Excel user who hasn’t spotted this before, here goes:

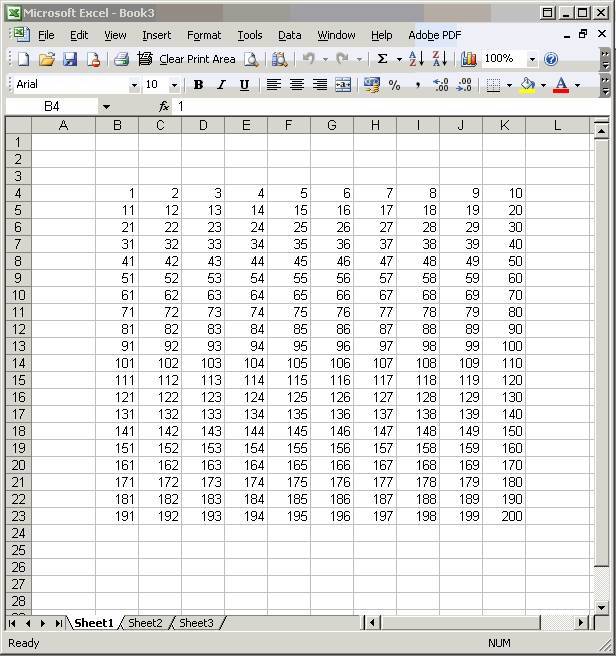

Navigate by double-clicking your edges

Double-click on the edge of a selected cell to quickly move to the corresponding edge of your data area. Do it while holding down the shift key to select all the intervening cells.

Navigate by double-clicking your edges - shift to select

If you prefer using the keyboard, the equivalent shortcuts are to hold down control and press one of the arrow keys to navigate, and to hold down both the control and shift keys and press an arrow key to select. Also, control+shift+spacebar selects the entire current region.

Categories: Excel · Office software · Simple

Excel Indirect() function – save hours

April 28, 2007 · 21 Comments

Excel’s Indirect function allows the creation of a formula by referring to the contents of a cell, rather than the cell reference itself. Of all the functions covered in our Excel courses, it is often Indirect() that attendees haven’t come across but find an immediate use for, often saving a great deal of time and effort in the process.

Indirect used to include references to the sheet named in cell A1

If you have several sheets, each with information for a single department for example, you may want to set up a summary sheet. Rather than creating separate formulae to refer to each sheet, Indirect() can allow you to create a single set of formulae all of which use a reference to a sheet name held in a cell – hopefully an example will make this clearer.

To refer to cell A2 on a sheet named ‘Cuddly Toys’ we would use a formula like this:

=’Cuddly toys’!A2

However, sometimes it would be useful to be able to change a whole series of references to, for example, a different sheet.

We could type the sheet name into a cell on our main sheet, say A1. We could then write a formula to refer to cell A2 on the sheet typed into cell A1.

If we simply type:

=A1!A2

Excel, not unreasonably, looks for a sheet named A1 and fails to find it.

However, we can use the Indirect function instead. Here is the screen from the Paste Function dialog for Indirect:

Indirect 1

& $A$1 & ‘!A2

Our Ref_text entry is a little confusing, so we have highlighted the pairs of speech marks in different colours. We have two items of text, and sandwiched in between them, an absolute reference to the contents of cell A1 – as you can see this correctly returns the contents of that cell – Cuddly toys. The ampersands are used to join the 3 elements of our Ref_Text together. The first text section simply holds a single apostrophe – this is necessary because, if our sheet name contains a space, it must be surrounded by apostrophes to be correctly identified. The second section contains an absolute reference to cell A1 – the cell where we type the name of our sheet. The third text section contains the closing apostrophe for the sheet name, together with the exclamation mark that separates sheet name from cell reference, and the cell reference itself – A2.

This works well to return the contents of cell A2 on our cuddly toys sheet, and if we were to type in ‘Boardgames’ for example, it would automatically return the contents of cell A2 on a sheet named ‘Boardgames’.

However we do have a problem left to solve. We need to refer to many cells on the price list sheets, but if we copy our Indirect cell, the reference to A2 doesn’t change, because it is just text. We can solve this by using a row/column style reference instead of A2:

Indirect 2

& $A$1 & ‘!RC

Note that we have to set the ‘A1’ argument of the function to ‘False’ to use this reference. RC will return the current row and column – so a formula in cell A2 will refer to A2 on cuddly toys, A3 to A3 and so on. If we need to refer to a different cell we would add numbers in square brackets after R and C. So R[1]C[1] would look at the cell one row down and one column right for example.

Categories: Excel · Not quite so simple · Office software

Using Excel text functions – part 2

April 28, 2007 · 3 Comments

Now let’s consider a slightly more difficult situation. In the following example we have a description and an amount in the same cell, but the two are always separated by a hyphen:

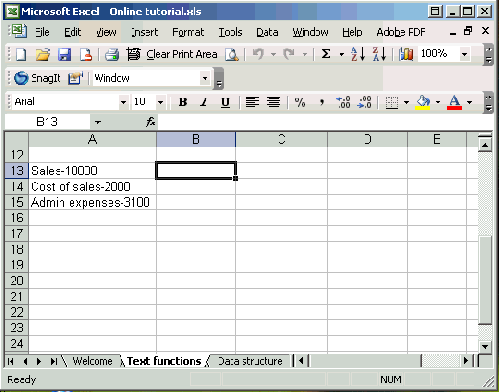

Excel text functions - search, len and value

Because neither the length of the text or the figure are necessarily consistent, we can’t use Left, Right or Mid. However, we can instead use the hyphen to work out where the description ends and the number begins. To do this we must first identify how many characters from the left there are before the hyphen.

To do this we use the ‘Search’ function. Here is the function screen for Search:

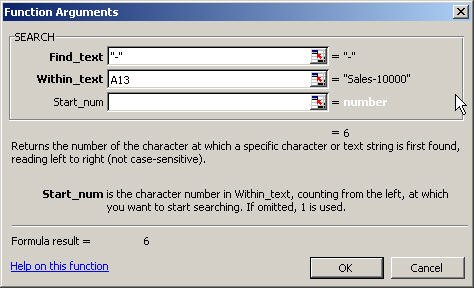

Search function

Note again that we can just type the hyphen into the ‘Find_text’ box and Excel will automatically add the speech marks. Note also that there is the option to specify the character position at which you want to start the search. This is useful if you need to locate more than one similar character – once you have found the first, you can start the next search from one character position higher. Our example is a simple one that doesn’t use the ‘Start_num’ argument and, as you can see, it returns the position of the hyphen as character 6.

=SEARCH(“-”,A13)

We can now ‘nest’ the Search function within the ‘Left’ function to retrieve the description:

=LEFT(A13,SEARCH(“-”,A13)-1)

In order to exclude the hyphen itself we have subtracted 1 from the result of search. If we copy this formula down our list we can see that it achieves the desired result:

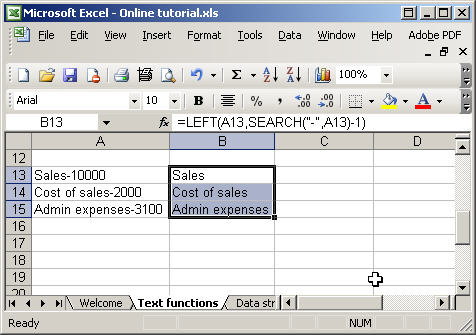

Excel text functions - search

Now to deal with the amount. Whilst we can use Search to find the starting position, we don’t yet know how long the amount is. We can work this out using the ‘Len’ function. ‘Len’ is a very simple function with just one argument – the text string, or cell containing the text string, that we wish to find the length of:

=LEN(A13)

This tells us how long the text is in total, and we have already used Search once to find the position of the hyphen. By combining Len and Search we can calculate how many characters follow the hyphen:

=LEN(A13)-(SEARCH(“-”,A13))

In the case of “Sales-10000” Len will return 11, the hyphen is at position 6, so 11-6 = 5, the number of characters in the amount.

We can use this with the ‘Right’ function to pick out the amount:

=RIGHT(A13,LEN(A13)-(SEARCH(“-”,A13)))

Again we can copy this formula down the list:

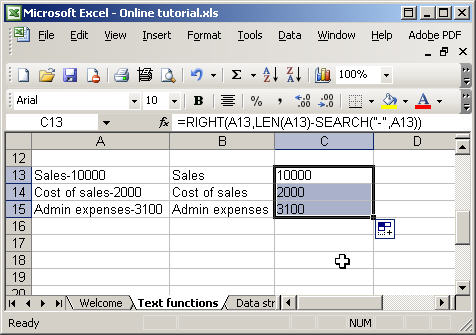

Excel text functions - search and len

As you can see above, whilst we have indeed separated out the amount characters, Excel is still treating our text as text and if we used Sum to total column C we would get zero:

We need to convert the text ‘amounts’ into proper numbers. To do this we use the function Value. We will use the value function to convert the three items in our list to numbers. Here is the formula for cell D13:

=VALUE(C13)

We can now copy this down our list and use Sum again to total our new column:

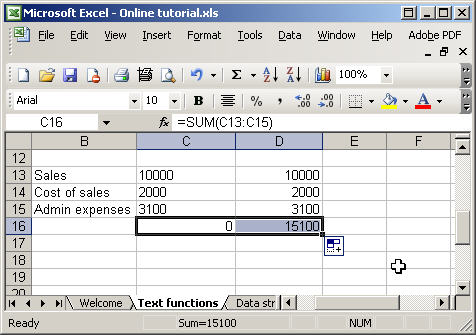

Excel text functions - value

As you can see, the text values are now treated as numbers and Sum works correctly.

These two functions can be used to remove unwanted characters from text. Sometimes, if you import text from other sources, you may end up with non-printing characters, such as carriage returns – Clean will remove these. Trim can be used to get rid of extraneous spaces:

In the following example we have part of an address that includes multiple spaces between ‘High’ and ‘Street’ and a carriage return character to separate the lines of the address.

In column B we have used Trim to get rid of the extra spaces:

=TRIM(A19)

and then in column C we have used Clean on the result to remove the carriage return:

=CLEAN(B19)

Excel text functions - trim and clean

Note that the Trim function leaves a single space between High and Street, but that the Clean function removes the carriage return entirely.

Categories: Excel · Not quite so simple · Office software

Using Excel text functions to work with analysis codes – part 1

April 14, 2007 · 20 Comments

This is the first part of a two part article that was prompted by a comparatively simple query about concatenating text. As well as dealing with that query, we’ll look at some of the simpler Excel text functions for working with text. Part 2 will follow shortly and, in it, I’ll look at some slightly more advanced functions for dealing with less predictable text entries.

Using text functions to deal with analysis codes

First of all let’s deal with the actual query, which asked how to combine text in two separate cells into a single cell. There are two principal ways to achieve this. Perhaps the simplest is to use the ‘&’ within an Excel formula:

In our example we have typed three items of text in columns A, B and C. In cell D1 we have entered the following formula to combine all three into a single cell:

=A1 & ” ” & B1 & ” ” & C1

Alternatively, there is an Excel function that concatenates text in this way. Unsurprisingly it is the ‘Concatenate’ function.

In the following screen shot we have used ‘Insert, Function’ to enter the required details. Note that in order to include spaces between the items of text, we have included “ “ between each pair of cells. Using the Insert Function screen, you just need to enter a space in the appropriate text box – Excel will add the speech marks for you:

So far so good, now let’s see how we cope with combining numbers and text. If we just want the number without worrying about the number format, then we can use exactly the same formula as for two items of text. Here we have included some ‘literal’ text in the formula together with a number in a cell:

As you can see the format is not ideal:

In the following example we have used the ‘Text’ function to format the number in the cell:

Note that you can also use named ranges. So if we name cell B3 as ‘profit’ we could write the formula as:

=”Profit is ” & TEXT(profit,”£#,##0″)

Note that we have included a space after the ‘is’ and before the “ so that the number does not follow on immediately from the text.

To see the text functions available in Word, select Insert, Function and then choose the ‘Text’ category (note that the examples shown are from Excel XP, other versions’ screens are slightly different):

As you can see there are lots of text functions, we will look at a few in detail, but if you want to explore all of them, just scroll through the list using the down arrow key. As you select each function in turn you will see a brief description of what it does towards the bottom of the screen. For more details, click on the ‘Help on this function’ link:

This group of functions can be used to return specific sets of characters from a text string. As you would imagine, Left is used to return a certain number of characters from the beginning of a text string, Right is used to return characters from the end and Mid to return characters from anywhere within the text string.

As an example, we will look at some nominal ledger codes. We will assume that the first two characters represent the company, the next three the branch, and the last four the type of expense or income:

First of all we will use the Left function to list the first two characters in the company column. We can either use Insert, Function or just type the function in directly if we know the required syntax:

=LEFT(A7,2)

Now let’s use Right in a similar way to sort out the four characters from the end of the code:

=RIGHT(A7,4)

As you can see, the syntax of Left and Right are very similar, just referring to the cell holding the code and the number of characters. The final function that we will look at in this section is ‘Mid’ and the syntax for this one is slightly more involved because we need not only to specify the number of characters, but also from which character to start. For this reason you may find it easier to use Insert, Function:

This should create the following formula:

If we now copy the three formulae down to the end of our list, we can see how our text string has been split into the three different sections:

Categories: Excel · Office software · Simple

Automatic continued in Word

March 29, 2007 · 8 Comments

Excellent question from one of my clients working on a Word template for their letters, how could the word ‘continued…’ be included automatically on page one of each letter, but only if the letter was longer than a single page?

A more standard question is how to include space for the headers and footers of preprinted letterhead stationery on page 1 only. This can be done by ensuring that in the Layout section of File, Page Setup, the ‘Different first page’ option is selected. This allows you to set up empty headers and footers on page one of the right size to allow for the letterhead but, because of the ‘Different first page’ option, they will not appear on subsequent pages.

The ‘continued…’ question is not so straightforward. The headers and footers for the letterhead are required on page one, whether there is one page or many pages, but as we have said, the ‘continued…’ should only be included when a second page is needed. After a fair amount of thought, the following solution came to mind. Set up the ‘Different first page’ option as before, and this time, in the appropriate position of the header or footer insert a Word ‘IF’ field. The IF should check whether the number of pages in the document is greater than 1 and if so, include ‘continued…’, and if not omit the word.

The Word field should look something like this:

Word IF field code

Be very careful when entering the Word field – forgetting a space or getting the syntax wrong in any other way will probably stop it working properly.

If you are not very familiar with using Word fields, the best method of inserting an IF field is probably to use the Insert, Field option in two stages.

First use Insert, Field to insert the IF field. Don’t worry about calculating the number of pages at this stage, but instead just type in a placeholder – for example the word ‘pages’:

i.e.

IF pages > 1 “continued….” “”

The IF field compares two ‘expressions’ and then prints one item of text if the comparison is evaluated as ‘true’ or a different item of text if it is ‘false’.

In fact, in this case because we don’t need anything printed if the result is false we could omit the ‘FalseText’ altogether:

IF pages > 1 “continued….”

Word IF field

Then right click on the resulting field result, and choose Toggle Field Codes to show the underlying code. Double Click on the word ‘pages’ to select it, then go to Insert, Field again and this time use the field DocProperty, Pages:
Word pages property field

Now select the entire field, right click, and choose Toggle Field Codes again to toggle back to displaying the result of the field.

Finally, to make sure the field result is recalculated every time the document is printed, set the ‘Update field’ option in the Tool, Options, Print screen:

Update fields option

Categories: Not quite so simple · Office software · Word
